Repair the trigger rope

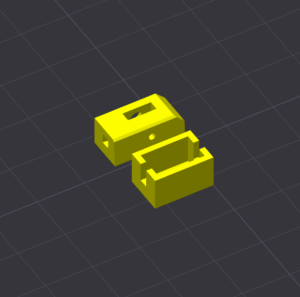

To proceed please print the two parts contained in this the 3mf file (download here).

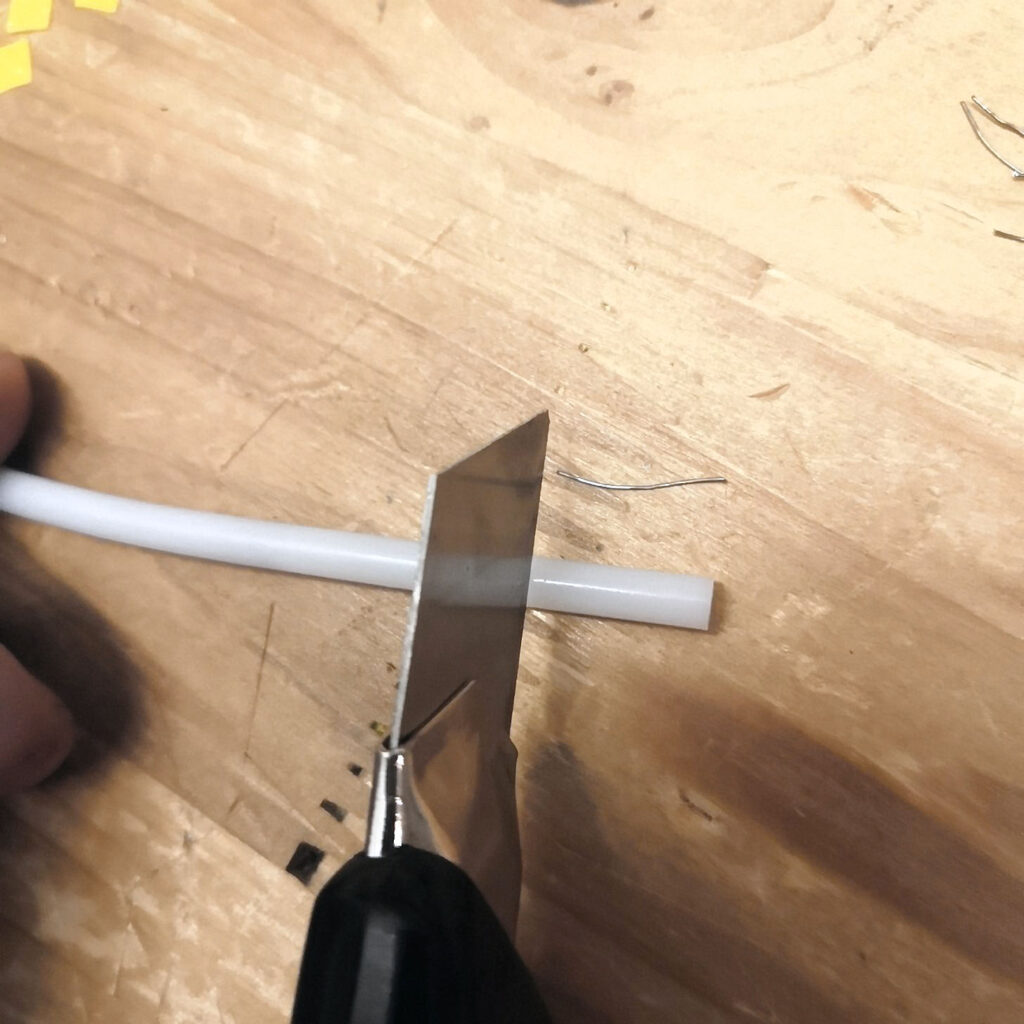

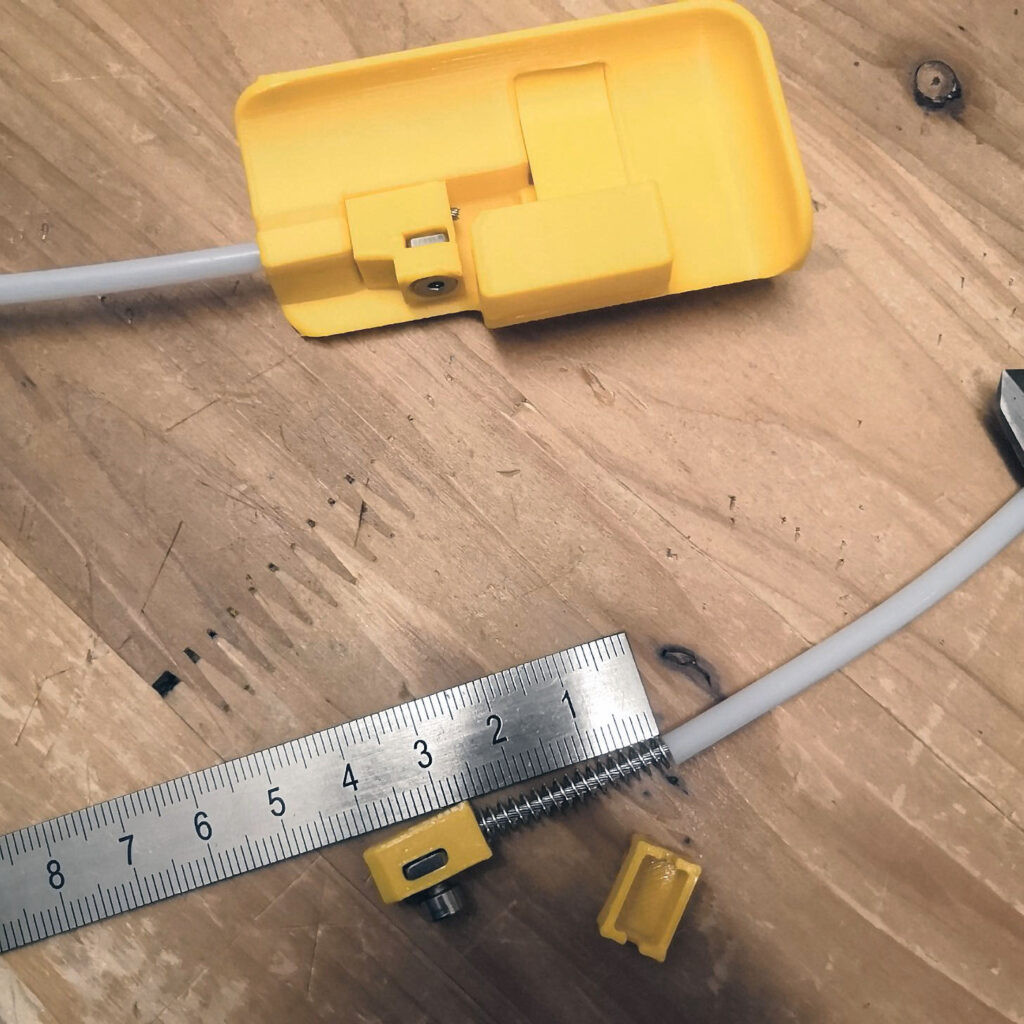

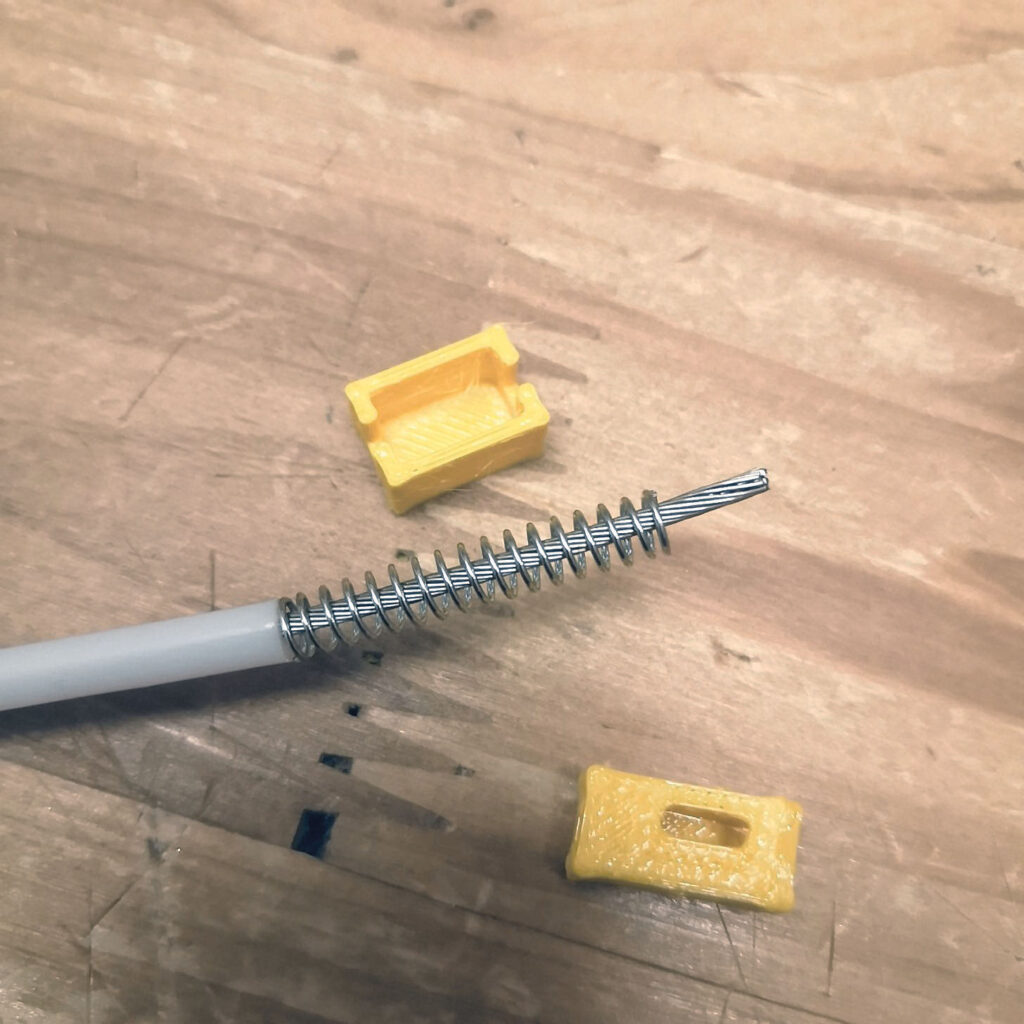

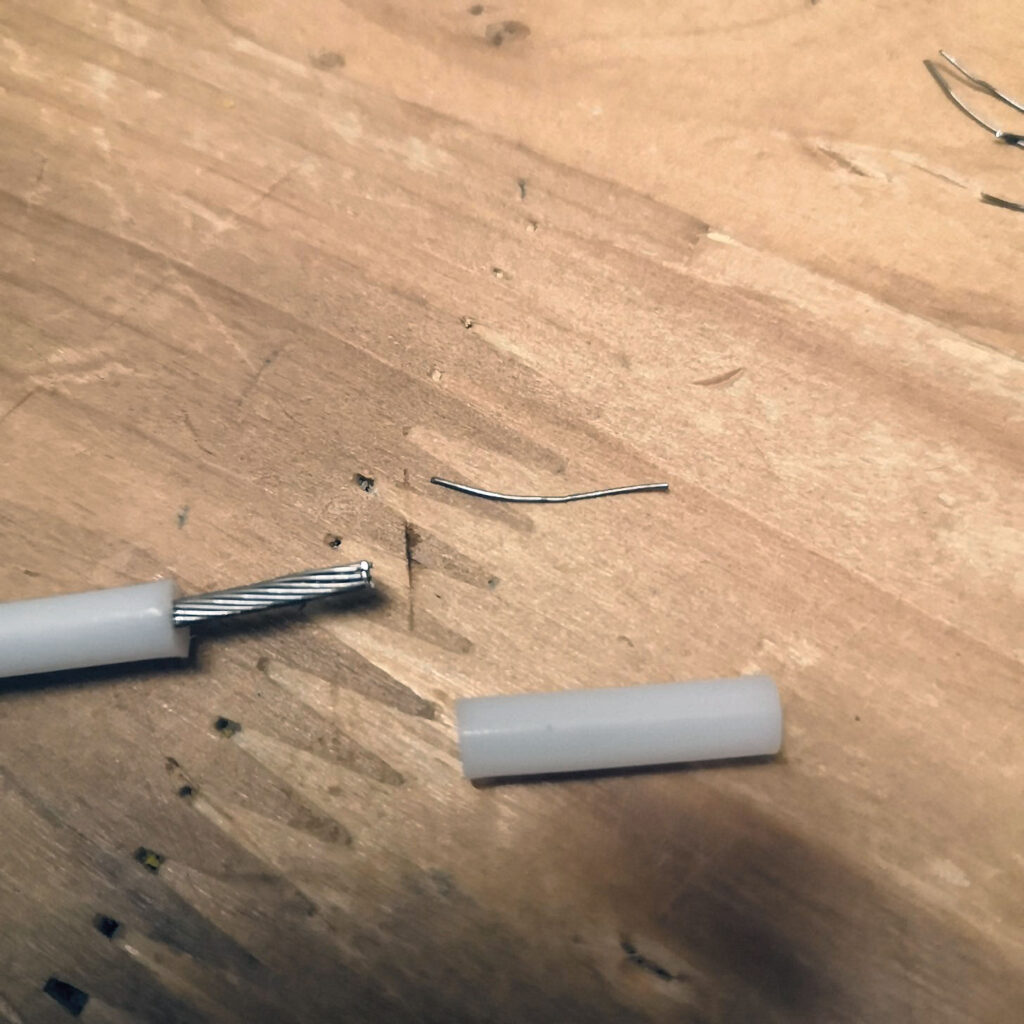

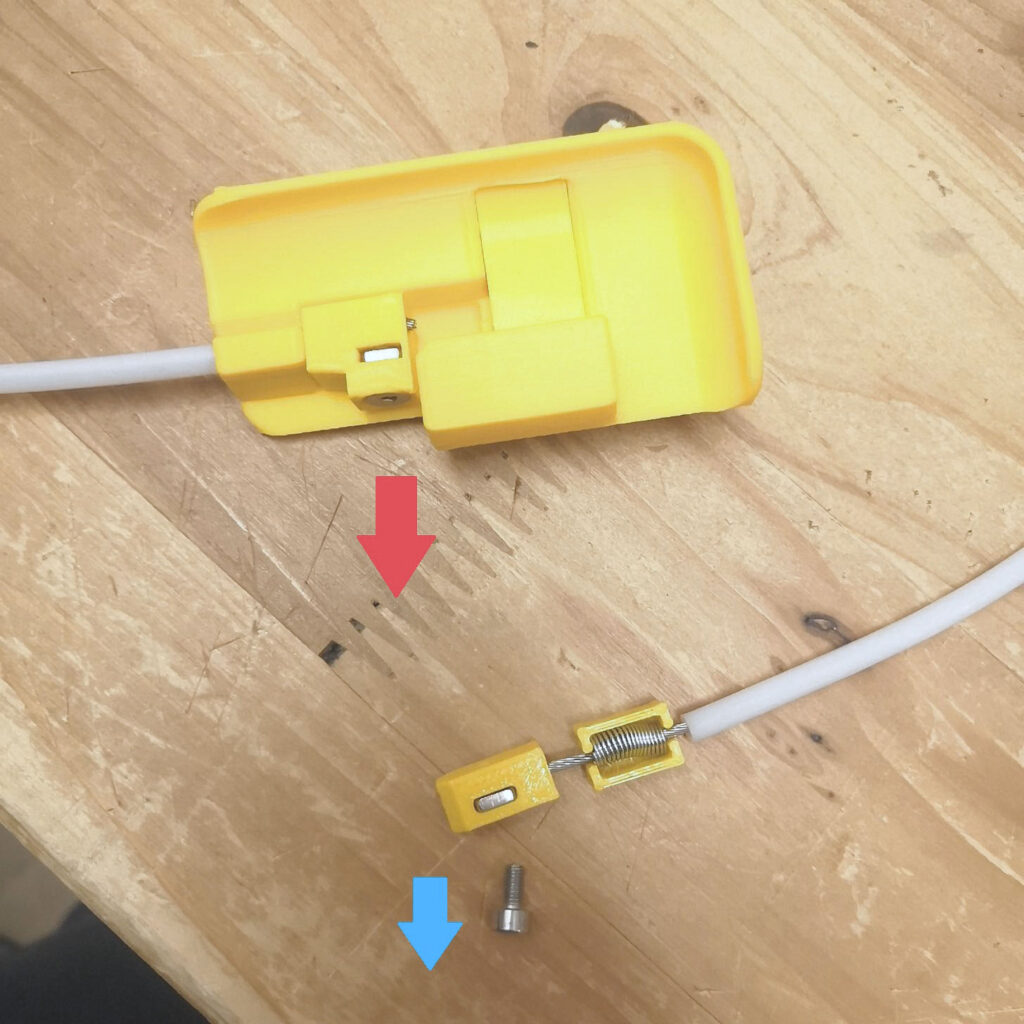

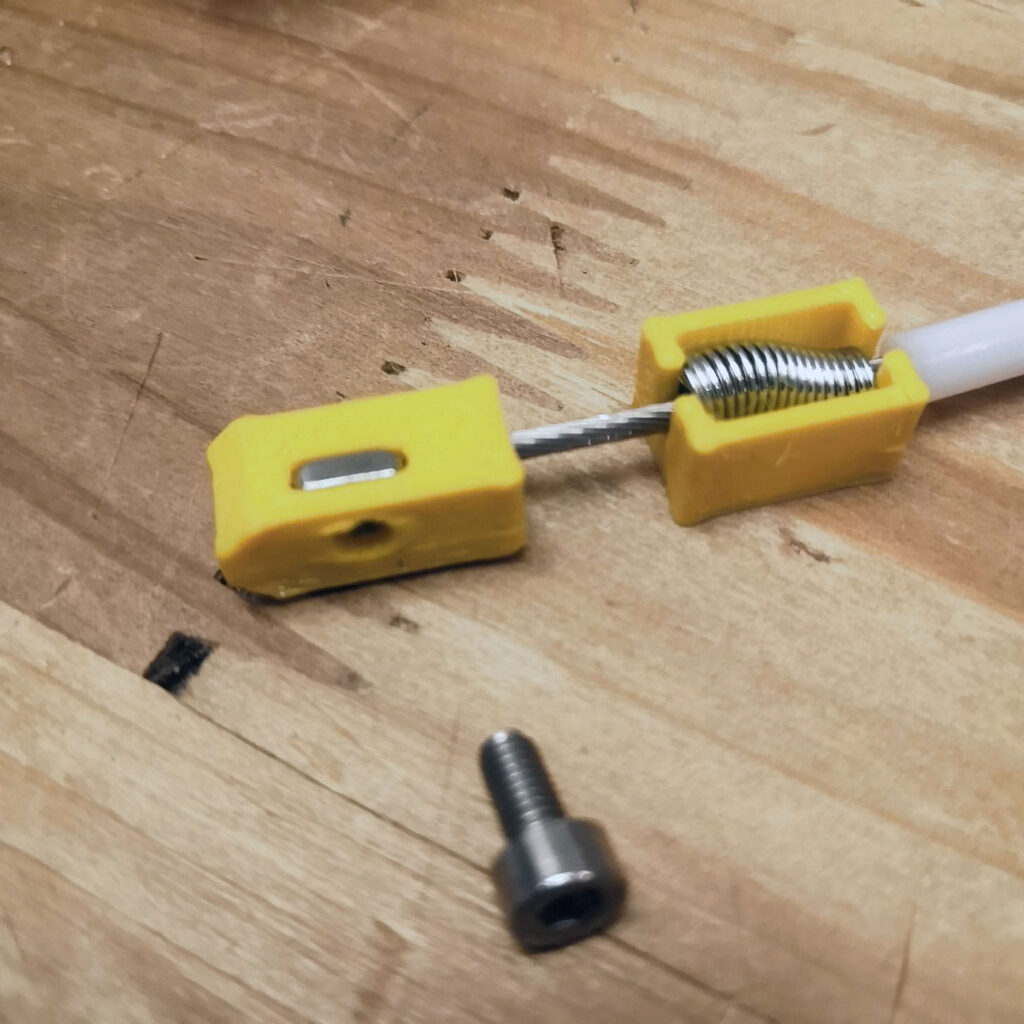

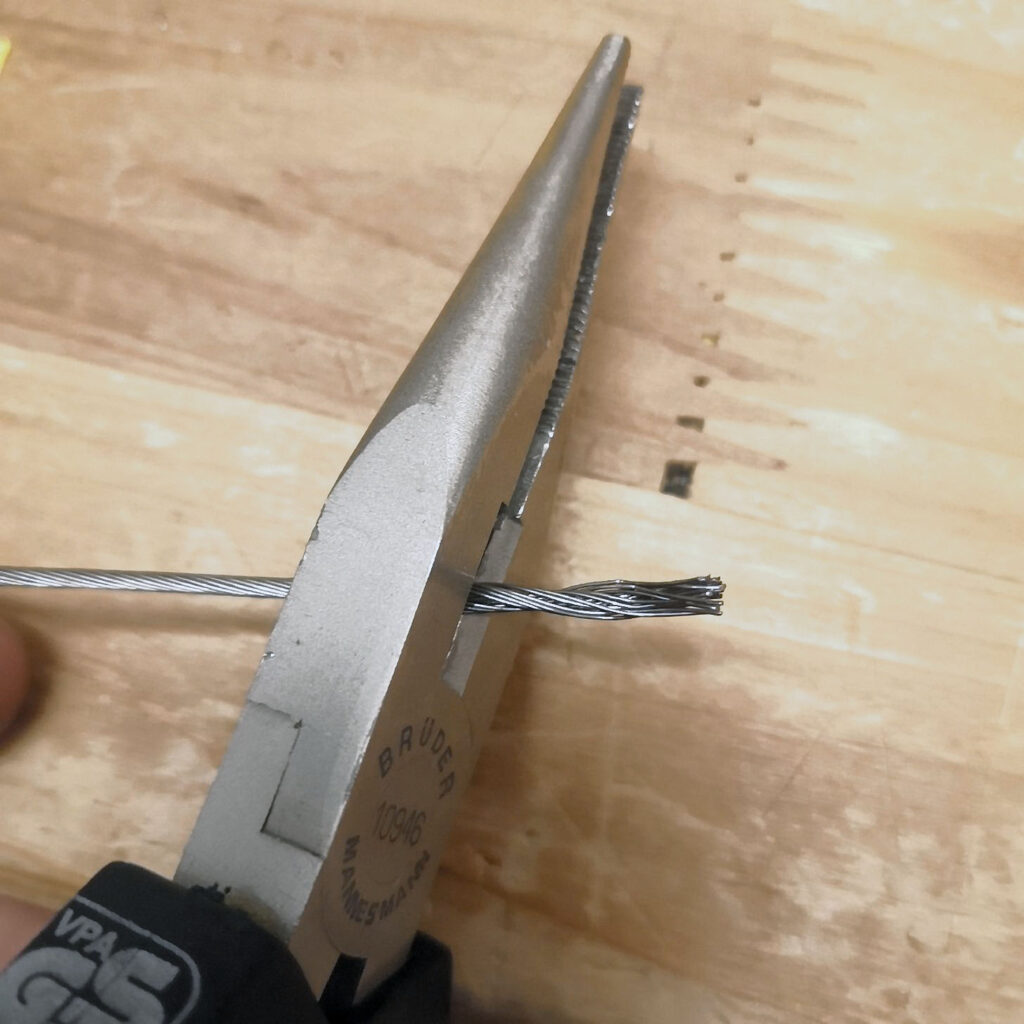

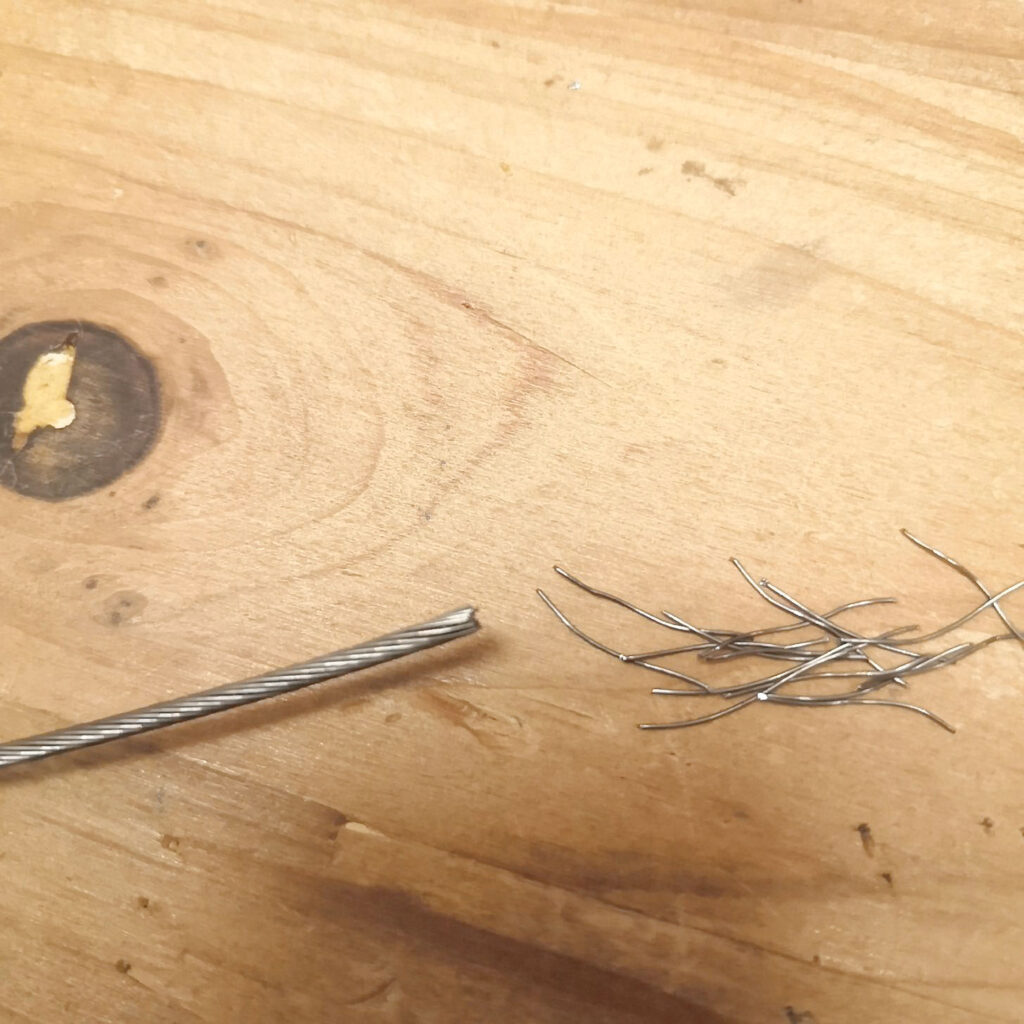

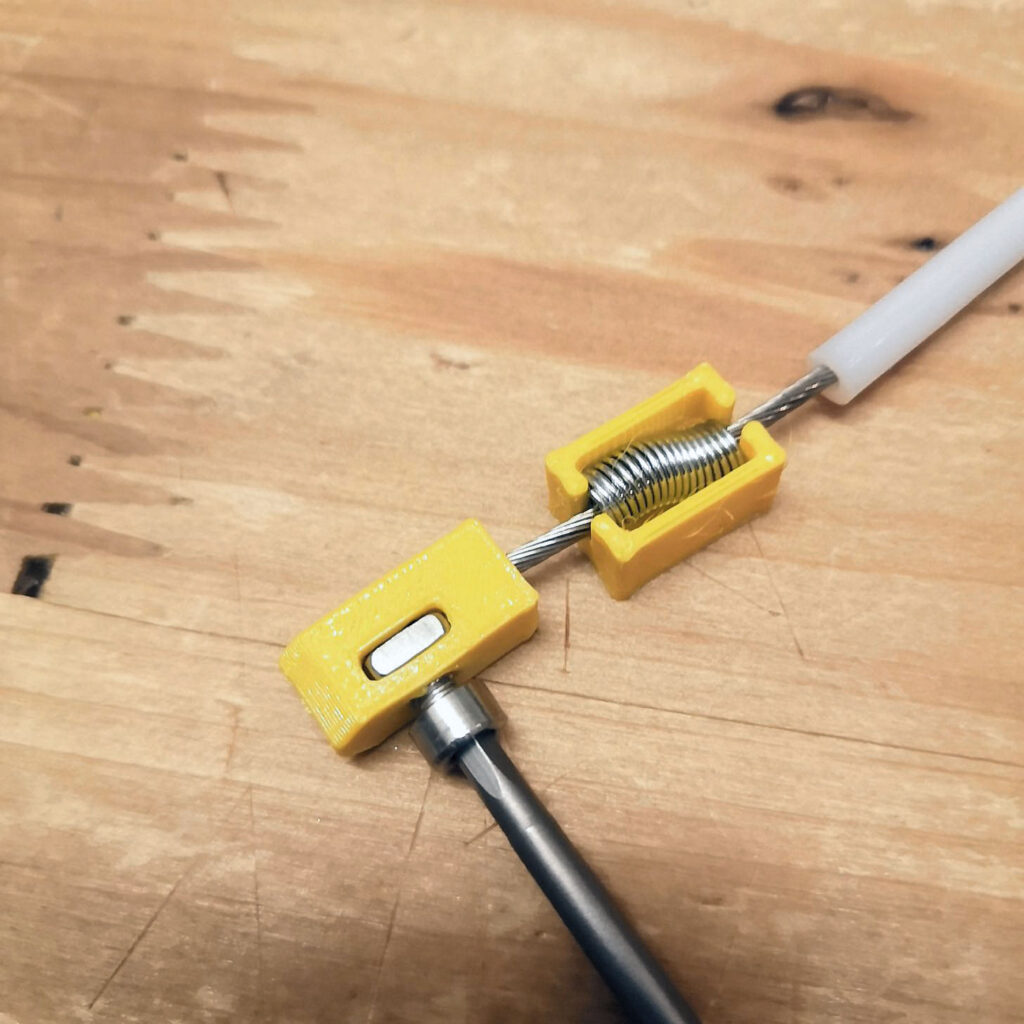

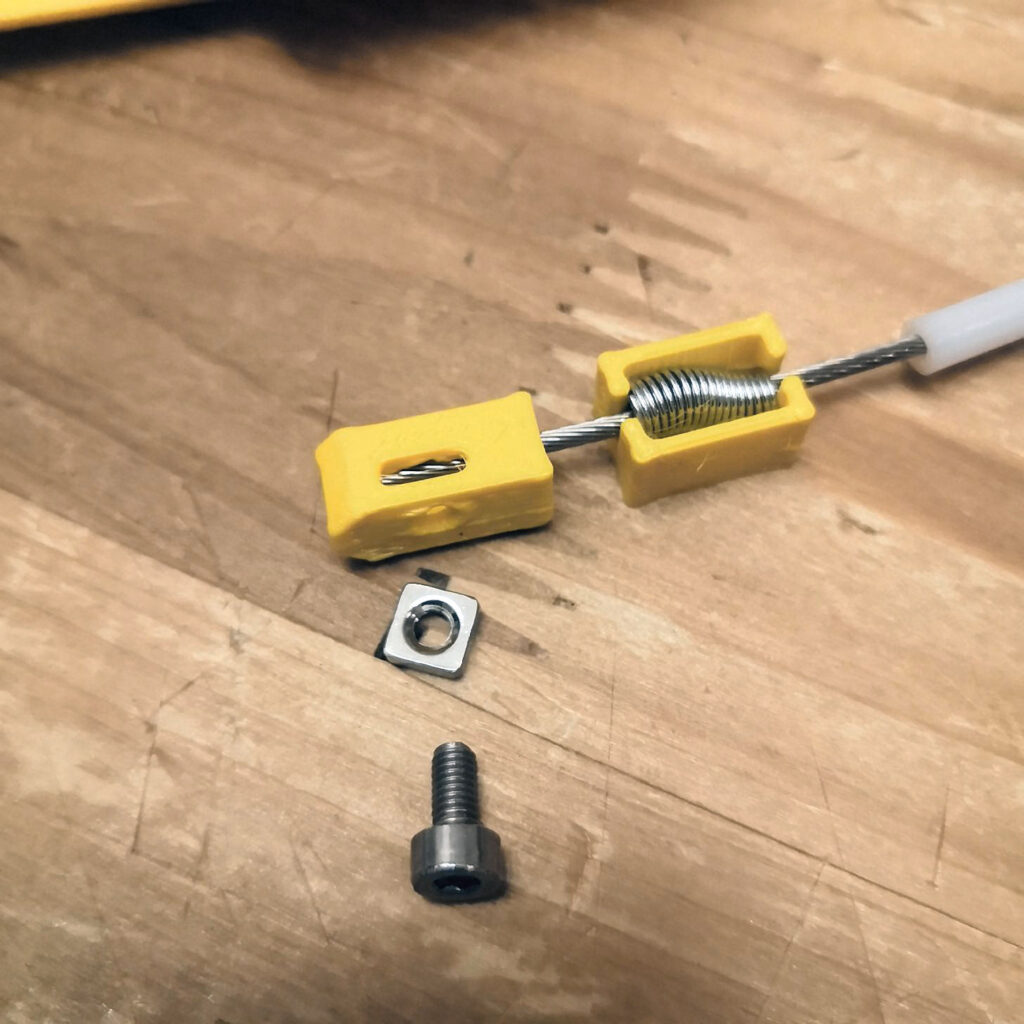

You probably need to cut few millimeters of the rope with the tongs to get a clean tip (Figure 1 , 2). Shorten PTFE tube by same length (Figure 3, 4). Then you need to put the spring on it (Figure 5). Use the fixture-part in the 3mf file to compress it, so it’s not in the way (Figure 6). Push the rope in the slider part, making sure it goes all way in and place the nut into the slot (Figure 7). Now (very important!) place the entire rope in exact same position and rotation as shown in the Figure 8. Both screws which hold the rope should point towards same direction. Secure the slider with the screw (Figure 9), but don’t over-tighten it (otherwise it will deform or brake). Release the spring from the fixture and check the length between the slider and the PTFE-tube (Figure 10). It should be 25-26mm.

If necessary you can slightly tighten the rope using the tightener (see here).
